ConstantsMapping.h File Reference

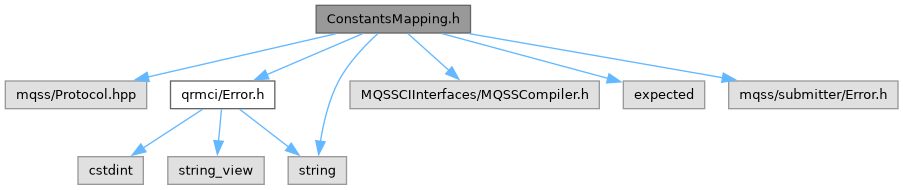

Include dependency graph for ConstantsMapping.h:

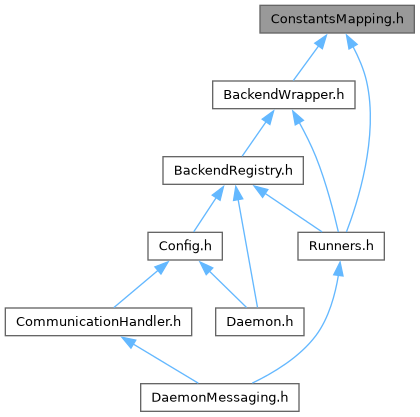

This graph shows which files directly or indirectly include this file:

Functions
Error	mqss::qrmci::toQrmciError (Error::Kind kind, const mqss::submitter::Error &error)
	Wrap a submitter failure as a QRM&CI failure of a kind the caller names.
mqss::CircuitFormat	mqss::qrmci::mapProtoCircuitFormat (int format) noexcept
	Translate a raw circuit-format value received over the wire into a mqss::CircuitFormat.
mqss::BackendType	mqss::qrmci::mapProtoBackendType (int type) noexcept
	Translate a raw backend-type value received over the wire into a mqss::BackendType, the same way mapProtoCircuitFormat() handles circuit formats: an enumerator this build does not know becomes BACKEND_TYPE_UNSPECIFIED rather than an out-of-range value.
mqss::BackendStatus	mqss::qrmci::mapProtoBackendStatus (int status) noexcept
	Translate a raw backend-status value received over the wire into a mqss::BackendStatus, the same way mapProtoCircuitFormat() handles circuit formats: an enumerator this build does not know becomes BACKEND_STATUS_UNSPECIFIED – and therefore not online – rather than an out-of-range value.
std::expected< mqss::mqssci::OptLevel, Error >	mqss::qrmci::getCompilerOptimizationLevel (int level)
	Translate a task's requested optimisation level into the matching mqss-ci compiler optimisation level.
bool	mqss::qrmci::isOnlineBackendStatus (mqss::BackendStatus status) noexcept
	Check whether a backend status means the backend is able to accept tasks.
std::string	mqss::qrmci::circuitFormatLabel (mqss::CircuitFormat format)
	Name a circuit format for a log line.
std::string	mqss::qrmci::backendStatusLabel (mqss::BackendStatus status)
	Name a backend status for a log line.

Detailed Description

Pure translations between the submitter, mqss protocol and mqss-ci enumerations: status, optimisation level, and wire-format decoding.

The tables themselves are private to src/ConstantsMapping.cpp; these functions are the whole interface. Task/compiler/backend circuit-format admission policy lives in CircuitFormatPolicy.h instead – that is policy, not translation.

No QDMI type appears here. QDMI translation belongs to MQSS-Submitter, behind its Client/Device/Job interface, which is what keeps QDMI out of every QRM&CI public header.

Definition in file ConstantsMapping.h.

Function Documentation

backendStatusLabel()

std::string mqss::qrmci::backendStatusLabel ( mqss::BackendStatus status )

nodiscard

Name a backend status for a log line.

Parameters

status

The backend status to describe.

Returns

The protocol's stable enumerator name (e.g. BACKEND_STATUS_IDLE), or UNKNOWN(<number>) if status is not a known enumerator.

circuitFormatLabel()

std::string mqss::qrmci::circuitFormatLabel ( mqss::CircuitFormat format )

nodiscard

Name a circuit format for a log line.

Parameters

format

The circuit format to describe.

Returns

The protocol's stable enumerator name (e.g. CIRCUIT_FORMAT_QASM2), or UNKNOWN(<number>) if format is not a known enumerator – the same case mapProtoCircuitFormat() normalizes away before this ever sees it, kept here only so a raw value logged before normalization still reads clearly.

getCompilerOptimizationLevel()

std::expected< mqss::mqssci::OptLevel, Error > mqss::qrmci::getCompilerOptimizationLevel ( int level )

nodiscard

Translate a task's requested optimisation level into the matching mqss-ci compiler optimisation level.

0 and 1 both select O1 – proto3's implicit zero for an omitted field must not be mistaken for a request to maximize optimisation.

Parameters

level

The optimisation level requested on the QuantumTask.

Returns

The matching mqss::mqssci::OptLevel, or a CompilationFailed error naming level if it is outside 0-3.

isOnlineBackendStatus()

bool mqss::qrmci::isOnlineBackendStatus ( mqss::BackendStatus status )

nodiscardnoexcept

Check whether a backend status means the backend is able to accept tasks.

Parameters

status

The backend status to check.

Returns

True for the statuses that count as online (idle and busy).

mapProtoBackendStatus()

mqss::BackendStatus mqss::qrmci::mapProtoBackendStatus ( int status )

nodiscardnoexcept

Translate a raw backend-status value received over the wire into a mqss::BackendStatus, the same way mapProtoCircuitFormat() handles circuit formats: an enumerator this build does not know becomes BACKEND_STATUS_UNSPECIFIED – and therefore not online – rather than an out-of-range value.

Parameters

status

The raw backend-status value as carried in the message.

Returns

The matching mqss::BackendStatus, or mqss::BackendStatus::BACKEND_STATUS_UNSPECIFIED if status is not a known enumerator.

mapProtoBackendType()

mqss::BackendType mqss::qrmci::mapProtoBackendType ( int type )

nodiscardnoexcept

Translate a raw backend-type value received over the wire into a mqss::BackendType, the same way mapProtoCircuitFormat() handles circuit formats: an enumerator this build does not know becomes BACKEND_TYPE_UNSPECIFIED rather than an out-of-range value.

Parameters

type	The raw backend-type value as carried in the message.

Returns

The matching mqss::BackendType, or mqss::BackendType::BACKEND_TYPE_UNSPECIFIED if type is not a known enumerator.

mapProtoCircuitFormat()

mqss::CircuitFormat mqss::qrmci::mapProtoCircuitFormat ( int format )

nodiscardnoexcept

Translate a raw circuit-format value received over the wire into a mqss::CircuitFormat.

protobuf preserves unknown enum values as their raw integer, so a peer built against a newer protocol can hand us an enumerator this build does not know; this is the only supported way to turn such a value into a mqss::CircuitFormat.

Parameters

format

The raw circuit-format value as carried in the message.

Returns

The matching mqss::CircuitFormat, or mqss::CircuitFormat::CIRCUIT_FORMAT_UNSPECIFIED if format is not a known enumerator.

toQrmciError()

Error mqss::qrmci::toQrmciError ( Error::Kind kind, const mqss::submitter::Error & error )

nodiscard

Wrap a submitter failure as a QRM&CI failure of a kind the caller names.

The submitter's ErrorCode is deliberately generic – it cannot distinguish a refused submission from a device fault – so the caller, which knows what it was trying to do, supplies the Kind. This function only formats the detail: the error code's own name followed by the submitter's message.

Parameters

kind	The QRM&CI error kind this failure should carry.
error	The submitter error to wrap.

Returns

A QRM&CI error of kind kind, detailing error.
