Examples.hpp File Reference

Go to the source code of this file.

Macros
#define	CUDAQ_PREFIX_FUNCTION   "__nvqpp__mlirgen__"
	Macro defining the prefix of each quantum kernel generated by QUAKE MLIR. This macro is used to identify MLIR/Quake quantum kernels.

Functions
std::unique_ptr< mlir::Pass >	mqss::opt::createCustomExamplePass ()
	Example custom MLIR pass.
std::unique_ptr< mlir::Pass >	mqss::opt::createPrintQuakeGatesPass (llvm::raw_string_ostream &ostream)
	Example MLIR pass that traverses a given MLIR/Quake.

Detailed Description

Header file that defines the signature for each MLIR/Quake defined into the Munich Quantum Software Stack (MQSS).

This header must be included to use the collection of example passes that are part of the MQSS.

Function Documentation

createCustomExamplePass()

std::unique_ptr< mlir::Pass > mqss::opt::createCustomExamplePass

(

)

Example custom MLIR pass.

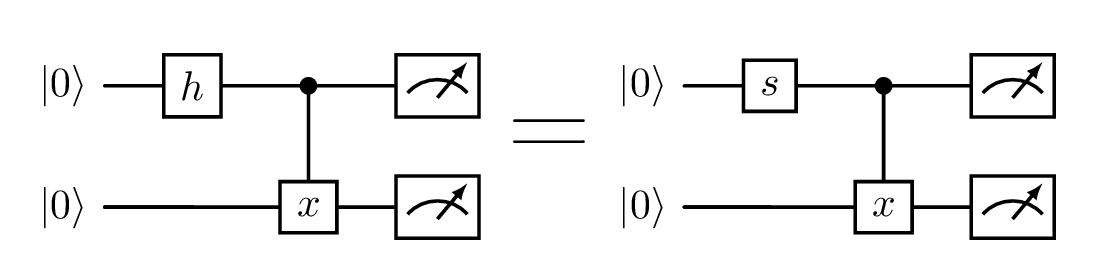

This method constructs an mlir::Pass of the type CustomExamplePass. This pass operates on any given MLIR/Quake module and replaces all Hadamard gates into a quantum circuit by S gates.

Returns

An mlir::Pass object containing the definition of the CustomExamplePass. This mlir::Pass object has to be passed to an mlir::PassManager to transform any given MLIR module.

createPrintQuakeGatesPass()

std::unique_ptr< mlir::Pass > mqss::opt::createPrintQuakeGatesPass

(

llvm::raw_string_ostream &

ostream

)

Example MLIR pass that traverses a given MLIR/Quake.

This method constructs an mlir::Pass of the type PrintQuakeGatesPas. This pass operates on any MLIR/Quake module and visit each operation dumping its name and type into the parameter ostream.

Parameters

[out]

ostream

A raw stream object that stores information about any given MLIR module.

Returns

An mlir::Pass object containing the definition of the PrintQuakeGatesPas. This mlir::Pass object has to be passed to an mlir::PassManager to take effect on any given MLIR module.
