Where QRM&CI sits in MQSS

MQSS — the Munich Quantum Software Stack — is the broader stack this repository belongs to. It provides compilation and runtime infrastructure for on-premise and remote quantum devices, supports modern optimization techniques and high-level quantum programming abstractions, and is designed to work across deployment models ranging from stand-alone installations to tightly integrated HPC environments.

Quantum Resource Manager and Compiler Infrastructure (QRM&CI) is the HPC-side runtime layer in this repository. It moves quantum tasks through backend selection, compilation, scheduling, and device submission, with RabbitMQ queues between stages and QDMI at the device boundary.

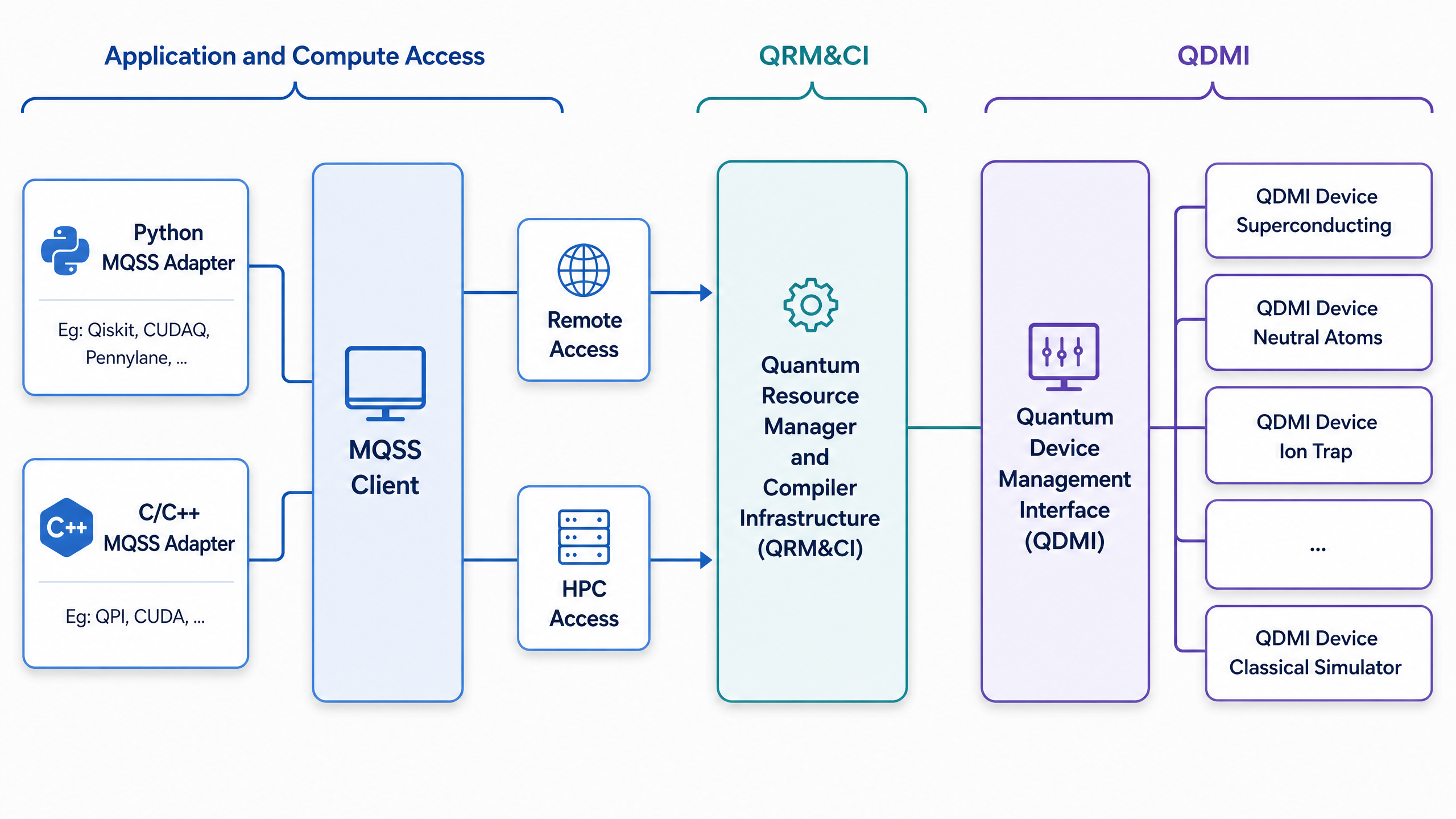

The Munich Quantum Software Stack, from user-facing frontends down to the devices, with QRM&CI as the HPC-side runtime layer

Components of the QRM&CI pipeline

QRM&CI treats task handling as a staged pipeline:

Backend registry keeps each known backend's latest snapshot, refreshed from QDMI and expired after a time-to-live, so selection and compilation only ever see backends that were recently alive.
Selector chooses a backend that is online and compatible with the task.
Compiler rewrites the task for the selected backend.
Scheduler orders ready work by policy before submission.
Submitter sends jobs to the selected device through QDMI and returns results.

Each stage receives work, processes it, and forwards it. In standalone mode all stages run in one process. In distributed mode the selector and worker processes hand work to each other over RabbitMQ.

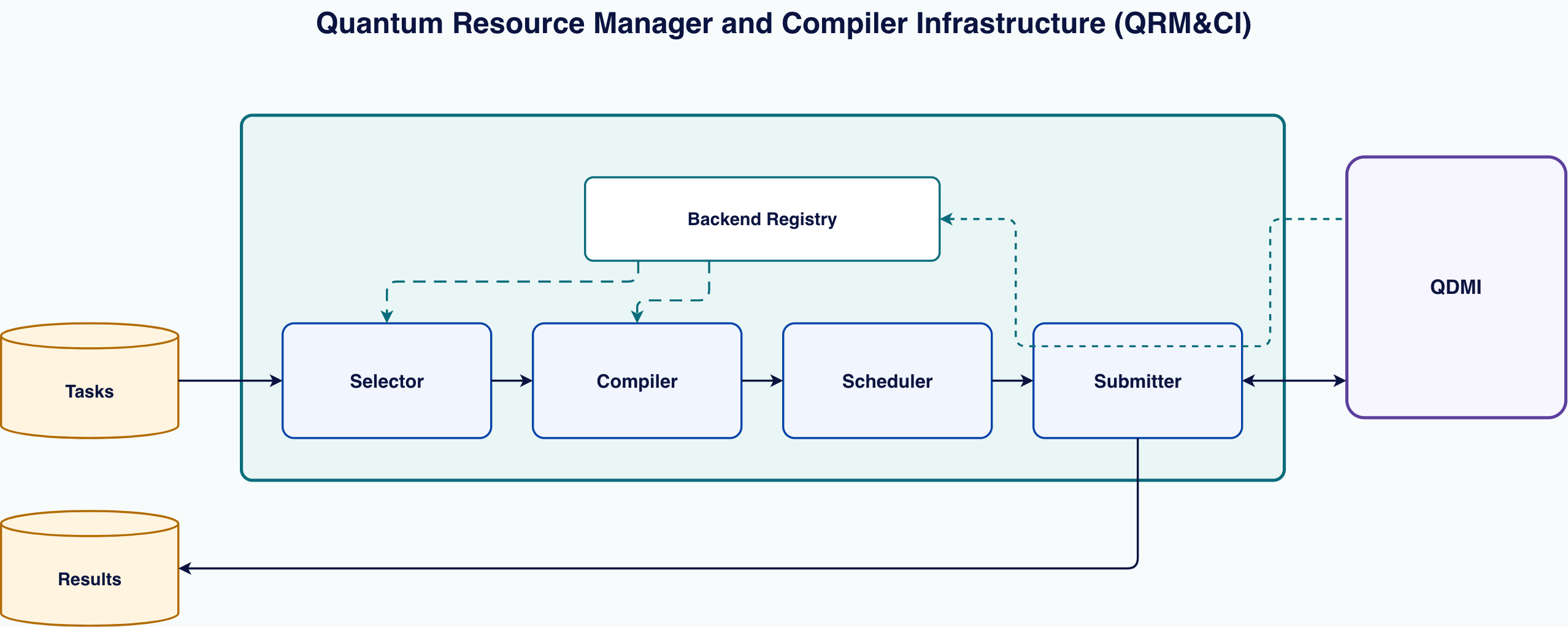

The QRM&CI standalone architecture

One turn of the standalone daemon's loop runs in a fixed order: it refreshes its own registry entry from QDMI and expires stale ones, then drains the task queue — selecting a backend, compiling and scheduling each task it finds — and finally submits and collects every job the scheduler has ready. The refresh comes first deliberately, so a quiet queue cannot starve it; the drain is a non-blocking poll, so a burst is handled in one turn rather than one task per poll interval. When a turn finds nothing to do, the daemon sleeps for the configured poll interval.

Nothing queues between the stages in this mode: the only queues involved are the intake queue the daemon consumes from (common.qrmciQueue, qrmci.tasks.queue by default) and, per result, the destination the task itself names in result_destination. A task that can be given no backend, fails to compile, or is refused by the device gets a cancellation result on that same destination. Whatever puts tasks on the intake queue — QOffload and the other MQSS frontend surfaces — is not part of this repository; see "What is not QRM&CI" below.

What is not QRM&CI

This repository does not implement every MQSS component around the pipeline:

QOffload and other MQSS frontend surfaces sit upstream of this repository and hand work into QRM&CI.
QDMI devices and drivers are external runtime dependencies that the submitter talks to.
The MQSS compiler, scheduler, submitter, and messaging libraries are linked dependencies of qrmci; this repository integrates them into one runtime path.

Deployment modes

QRM&CI currently ships two deployment modes:

Standalone: one process runs selection, compilation, scheduling, and submission together.
Distributed: one selector process receives tasks and chooses backends, and worker processes compile, schedule, submit, and publish backend status for the selector to consume.

The distributed topology is one selector paired with one or more workers. The selector keeps its backend registry from the status messages the workers publish, so adding a worker adds a backend the selector can choose from.

Library and daemons

The pipeline logic lives in a static library, qrmci, built from include/qrmci/*.h and src/*.cpp. All three shipped binaries — qrmcid-standalone, qrmcid-distributed-selector, and qrmcid-distributed-worker — are a single main.cpp each, linked against that library. There is no plugin system: composing the pipeline differently means writing a fourth entrypoint the same way.

If the shipped daemons fit your needs, deploy them (Getting Started). If you need a different workflow, compiler, or scheduling strategy, write your own entrypoint against qrmci (Build custom QRM&CI workflow).

Which reader are you?

I want to...	You are here if...	Start here
Deploy QRM&CI	you want the shipped standalone or distributed daemons	Getting Started
Build custom QRM&CI workflow	you need a different workflow, compiler, or scheduling strategy	Build custom QRM&CI workflow
Contribute to QRM&CI itself	you are editing code in this repository	Development Guide
Look up symbols and interfaces	you need the exact public types and function contracts	API Reference

Terminology

task - an mqss::QuantumTask moving through the pipeline
backend - a device snapshot with a name, qubit count, status, and supported circuit formats
backend registry - the per-process set of known backends, with liveness tracked by a time-to-live and a publish interval
backend status - the mqss::Backend snapshot a submitter-owning process publishes so that a selector without a device connection can keep its registry fresh
stage - one step in the pipeline, such as selection or submission
queue - a RabbitMQ queue carrying tasks, results, or backend status between stages
driver/device - the QDMI endpoint a submitter-owning process talks to
ready job - a scheduled task the scheduler has released for submission
in flight - submitted to the device but not yet collected
cancellation result - the result a daemon sends back in place of a mqss::QuantumResult when a task cannot be selected, compiled, or executed
