CudaQ Decomposition Patterns

CudaQ offers a set of decomposition passes used by the nvq++ quantum compiler. The passes can be applied to a given quantum kernel as follows:

First, extract the MLIR context and define an MLIR PassManager as follows:

auto [mlirModule, contextPtr] = extractMLIRContext(quakeModule);
mlir::MLIRContext &context = *contextPtr;
// creating pass manager
mlir::PassManager pm(&context);

Next, define a DecompositionPassOptions object and pass to it a list with the decomposition passes that you desire to apply. For instance, in the following example the decomposition pattern CXToCZ is specified.

cudaq::opt::DecompositionPassOptions options;
options.enabledPatterns = {"CXToCZ"};

Note

The enabledPatterns in the cudaq::opt::DecompositionPassOptions is a list. Thus, more than one decomposition pattern can be applied using the same pass manager.

Next, add a cudaq::opt::createDecompositionPass to the pass manager. Do not forget to pass options as input parameter of cudaq::opt::createDecompositionPass, as follows:

pm.addPass(cudaq::opt::createDecompositionPass(options));

Finally, you can dump and visualize the effects of the decomposition pattern on your MLIR module as follows:

// running the pass
if(mlir::failed(pm.run(mlirModule)))
  std::runtime_error("The pass failed...");
// if pass is applied successfully ...
std::cout << "Circuit after pass:\n";
mlirModule->dump();

In the following, the list of all decomposition patterns offered by CudaQ are shown with a respective example.

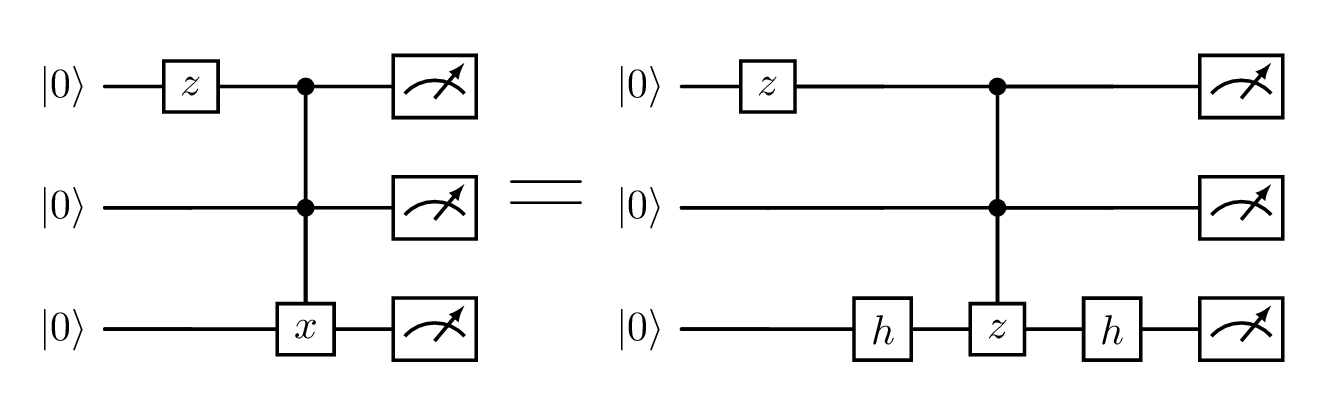

CCX to CCZ

The pattern CCXToCCZ replaces all the two-controls X gates in a circuit by two-controls Z gates.

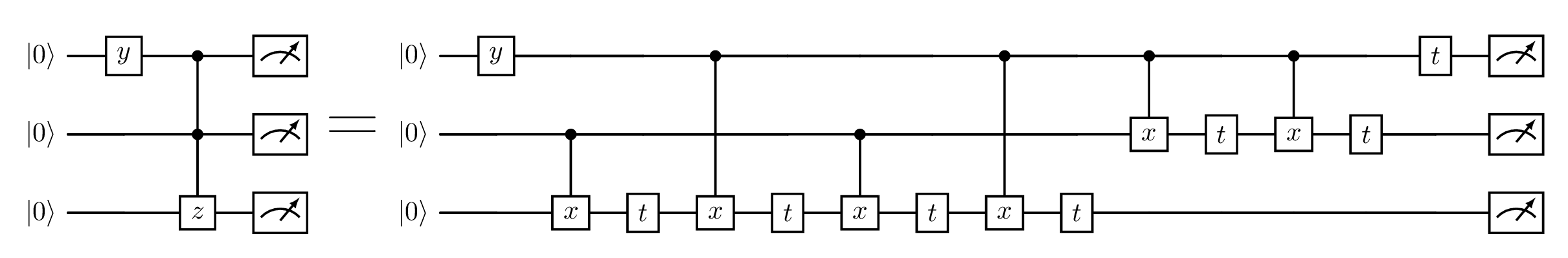

CCZ to CX

The pattern CCZToCX replaces all the two-controls Z gates in a circuit by two-controls X gates.

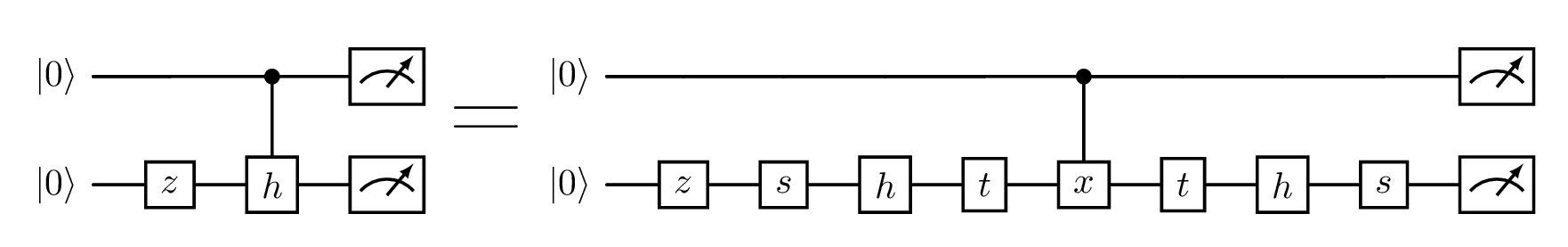

CH to CX

The pattern CHToCX replaces all the controlled Hadamard gates in a circuit by CNot gates.

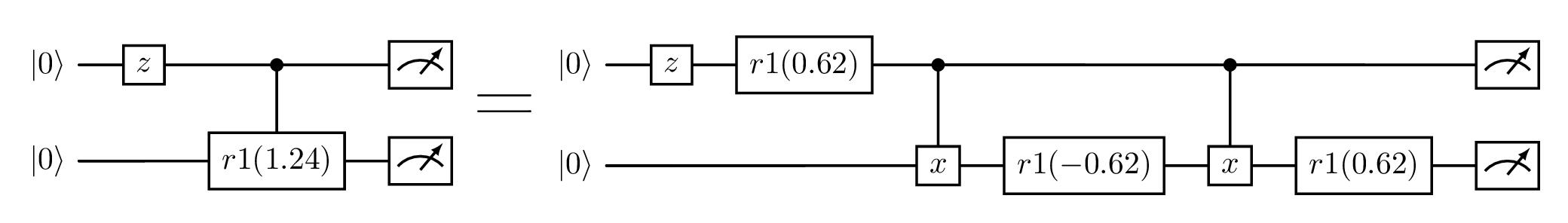

CR1 to CX

The pattern CR1ToCX replaces all the controlled R1 gates in a circuit by CNot gates.

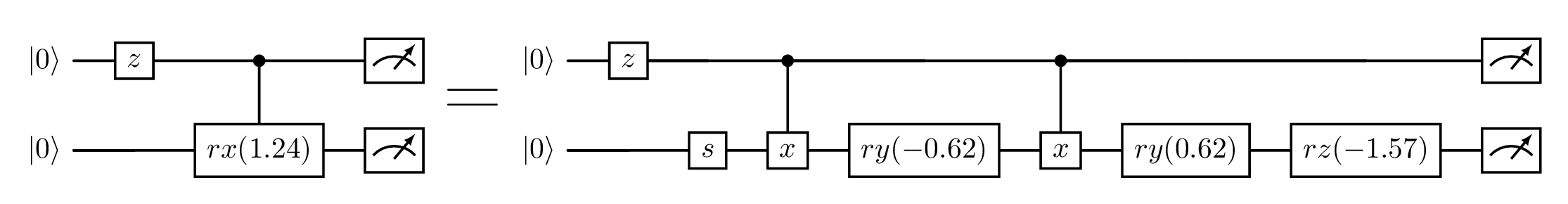

CRx to CX

The pattern CRxToCX replaces all the controlled RX gates in a circuit by CNot gates.

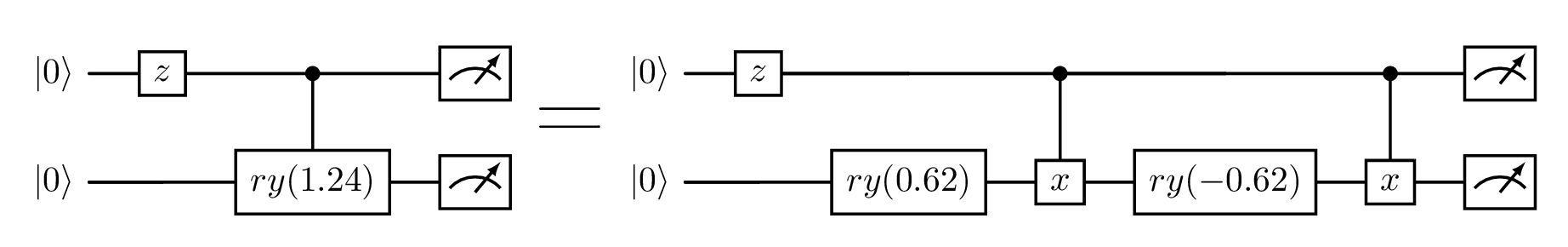

CRy to CX

The pattern CRyToCX replaces all the controlled RY gates in a circuit by CNot gates.

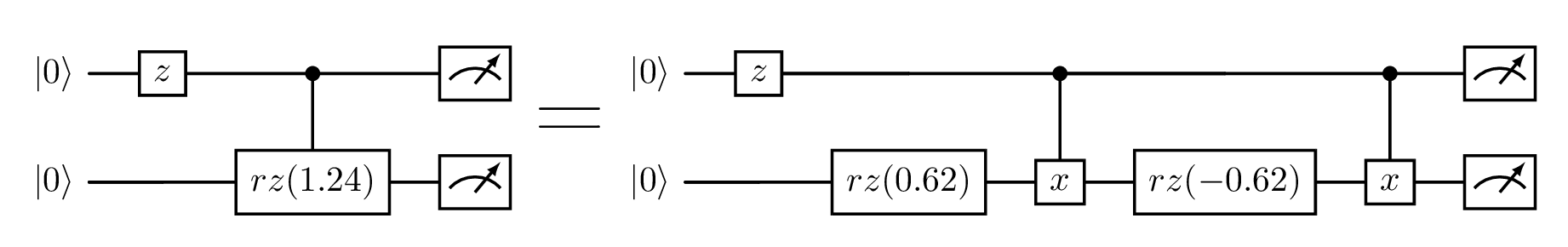

CRz to CX

The pattern CRzToCX replaces all the controlled RZ gates in a circuit by CNot gates.

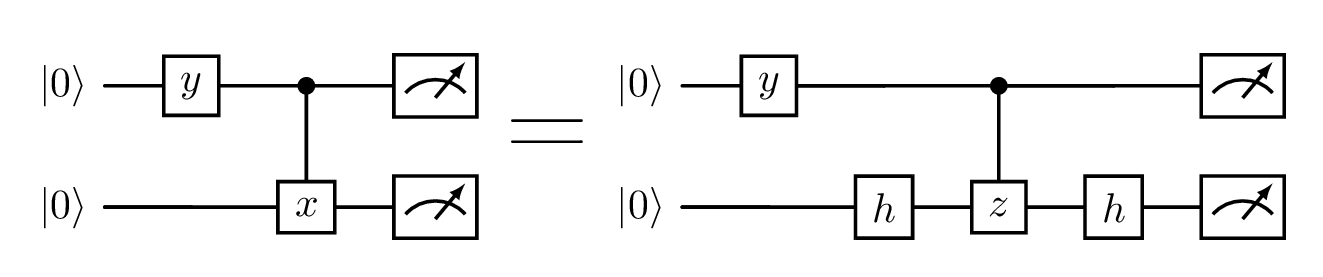

CX to CZ

The pattern CXToCZ replaces all the CNot gates in a circuit by controlled Z gates.

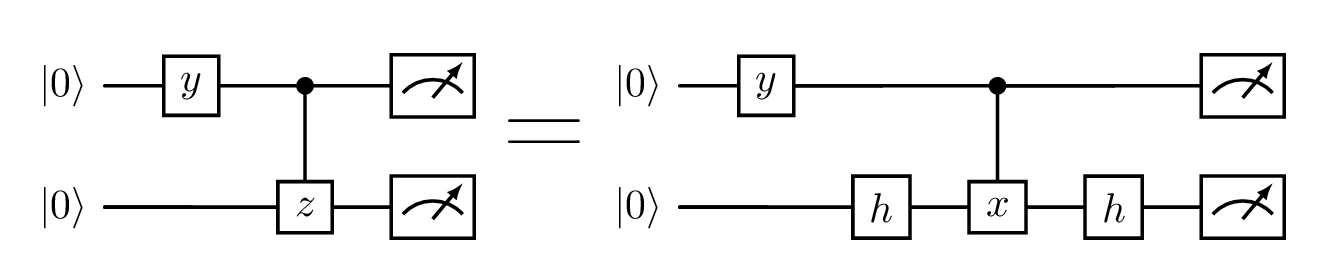

CZ to CX

The pattern CZToCX replaces all the controlled Z gates in a circuit by CNot gates.

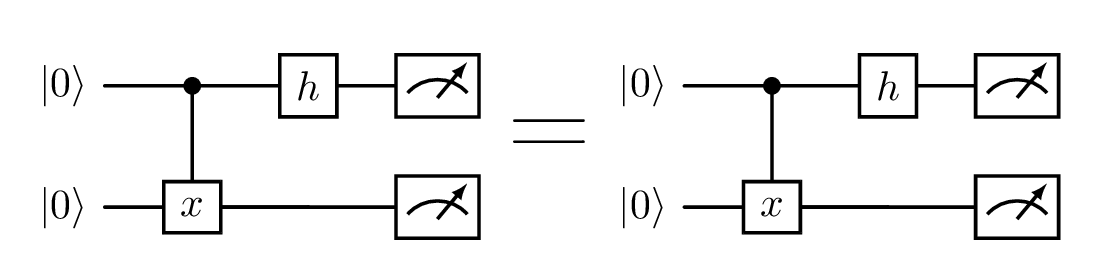

Exp Pauli Decomposition

The pattern ExpPauliDecomposition applies Pauli Decompositions.

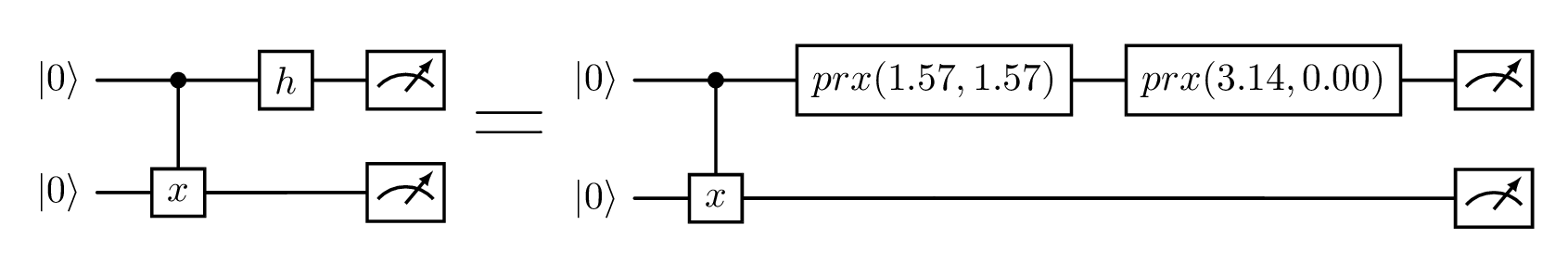

H to PhasedRx

The pattern HToPhasedRx replaces all the Hadamard gates in a circuit by phased RX gates.

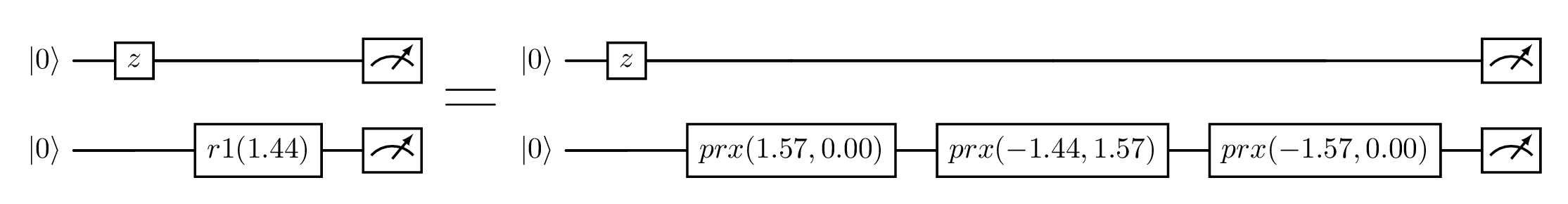

R1 to PhasedRx

The pattern R1ToPhasedRx replaces all the R1 gates in a circuit by phased RX gates.

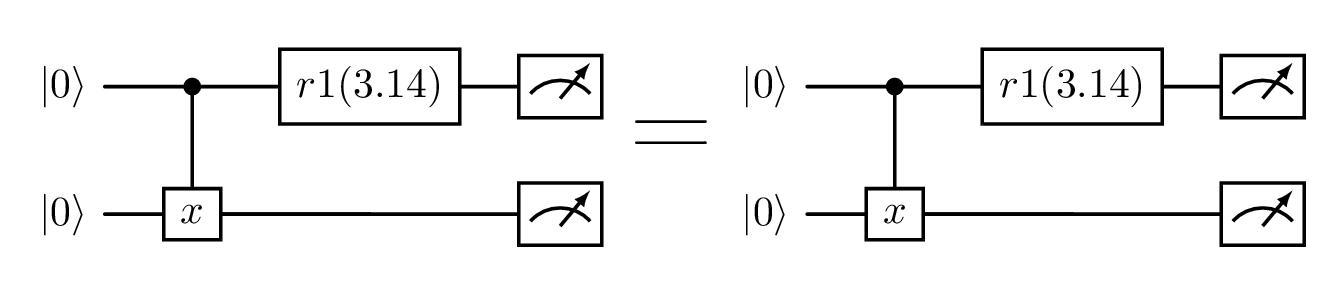

R1 to Rz

The pattern R1ToRz replaces all the R1 gates in a circuit by RZ gates.

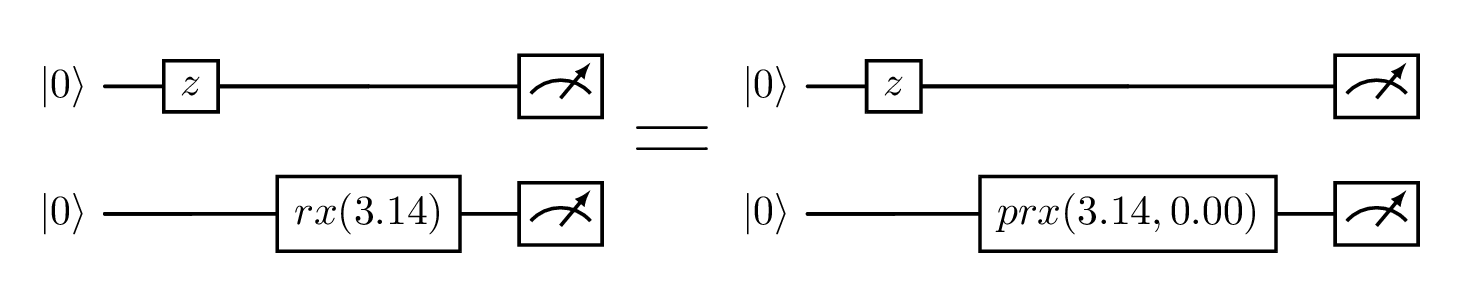

Rx to PhasedRx

The pattern RxToPhasedRx replaces all the RX gates in a circuit by phased RX gates.

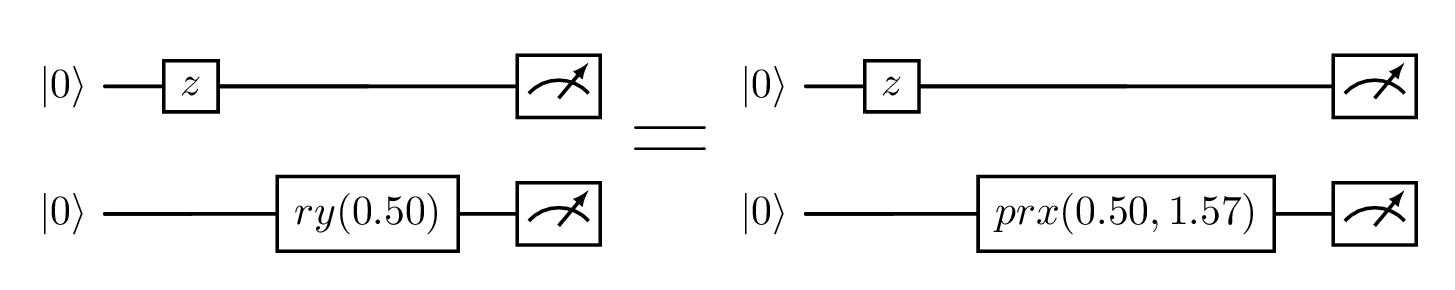

Ry to PhasedRx

The pattern RyToPhasedRx replaces all the RY gates in a circuit by phased RX gates.

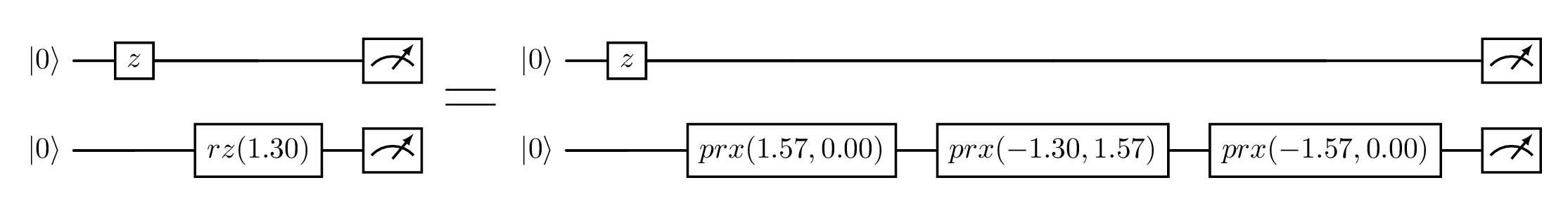

Rz to PhasedRx

The pattern RzToPhasedRx replaces all the RZ gates in a circuit by phased RX gates.

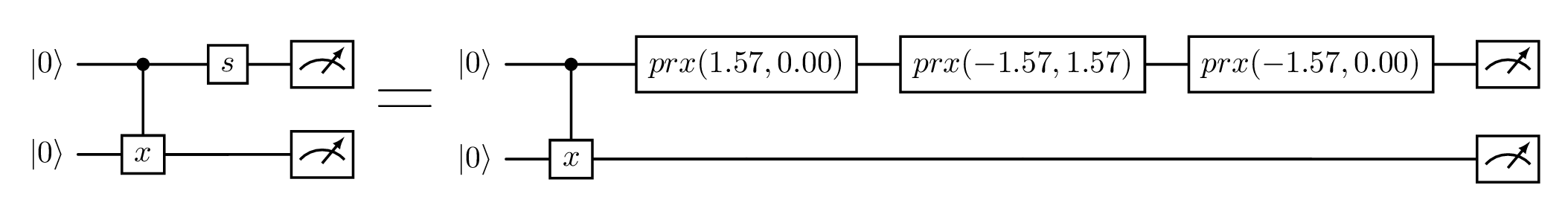

S to PhasedRx

The pattern SToPhasedRx replaces all the S gates in a circuit by phased RX gates.

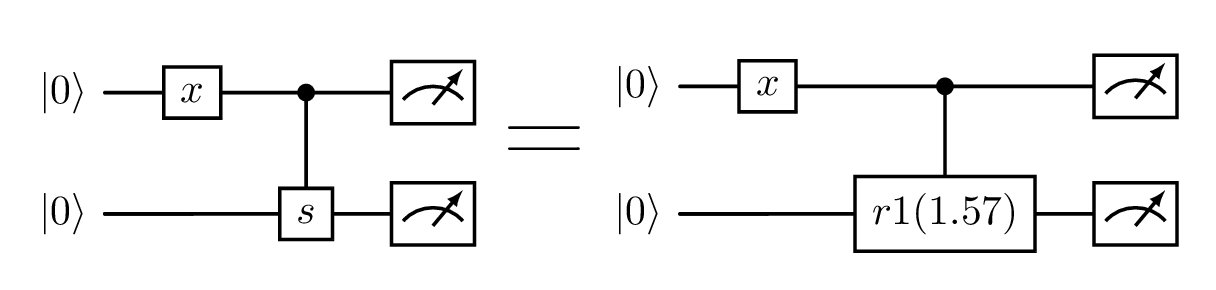

S to R1

The pattern SToR1 replaces all the S gates in a circuit by R1 gates.

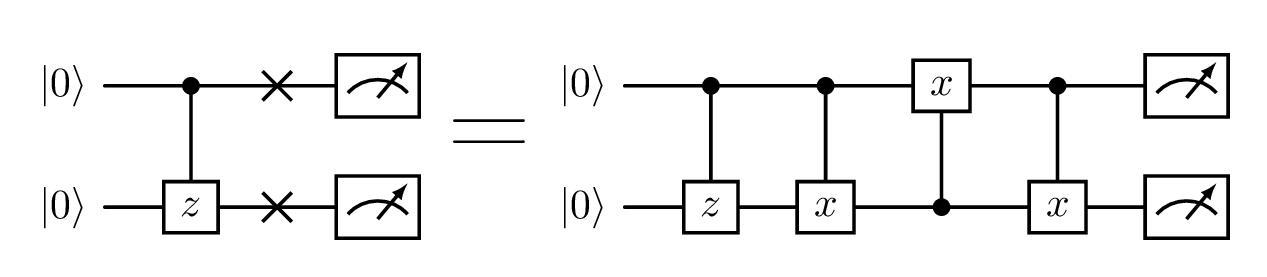

Swap to CX

The pattern SwapToCX replaces all the swap gates in a circuit by CNot gates.

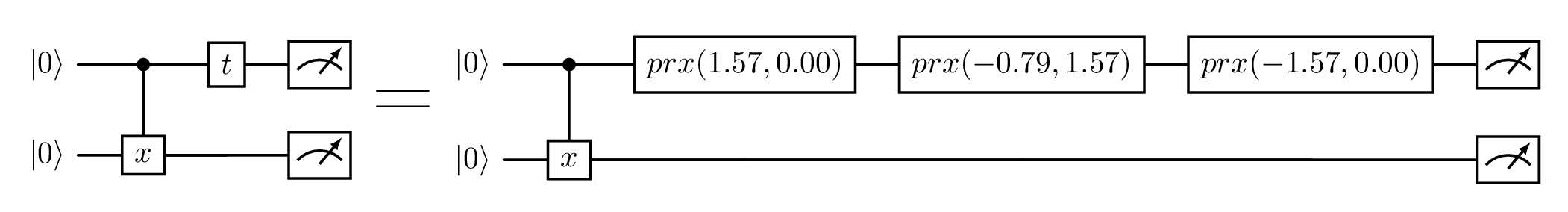

T to PhasedRx

The pattern TToPhasedRx replaces all the T gates in a circuit by phased RX gates.

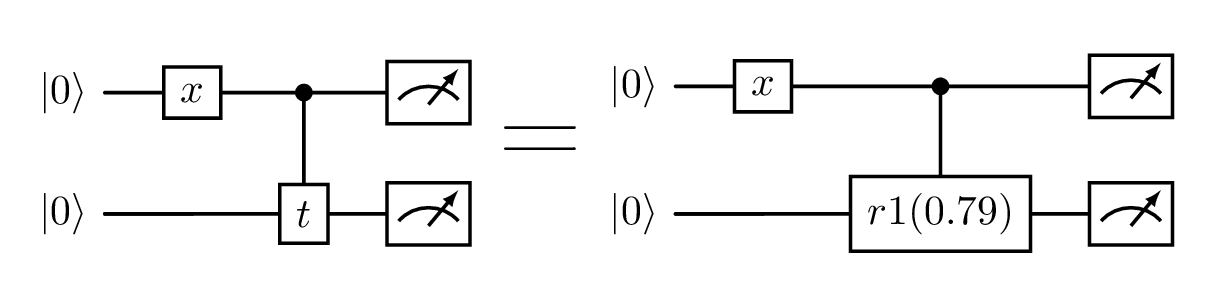

T to R1

The pattern TToR1 replaces all the T gates in a circuit by R1 gates.

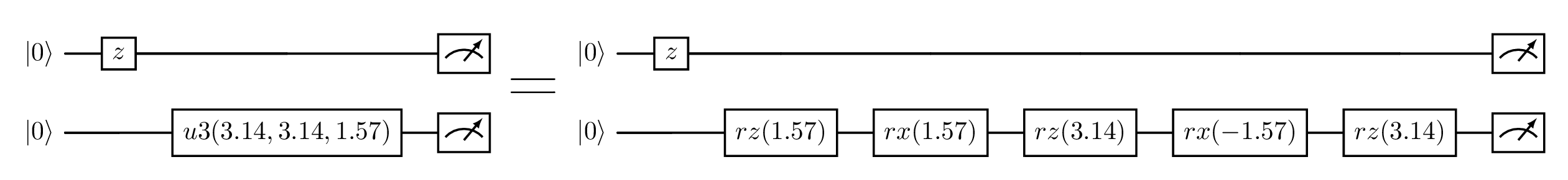

U3 to Rotations

The pattern U3ToRotations replaces all the U3 gates in a circuit by rotation gates.

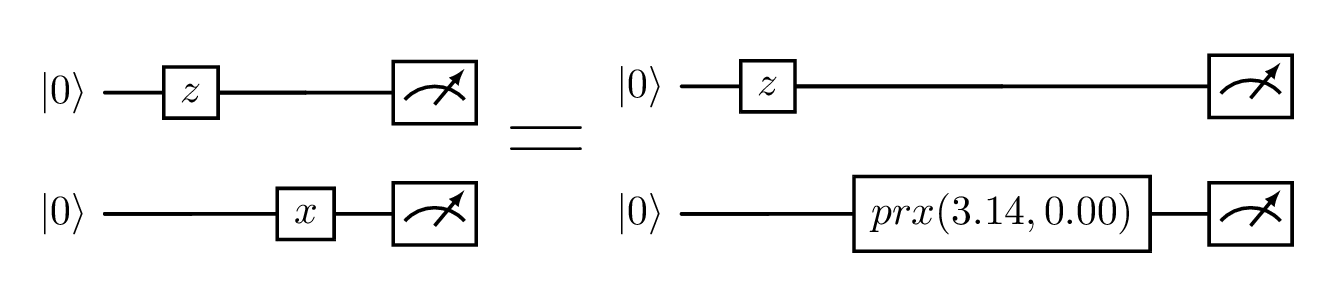

X to PhasedRx

The pattern XToPhasedRx replaces all the X gates in a circuit by phased RX gates.

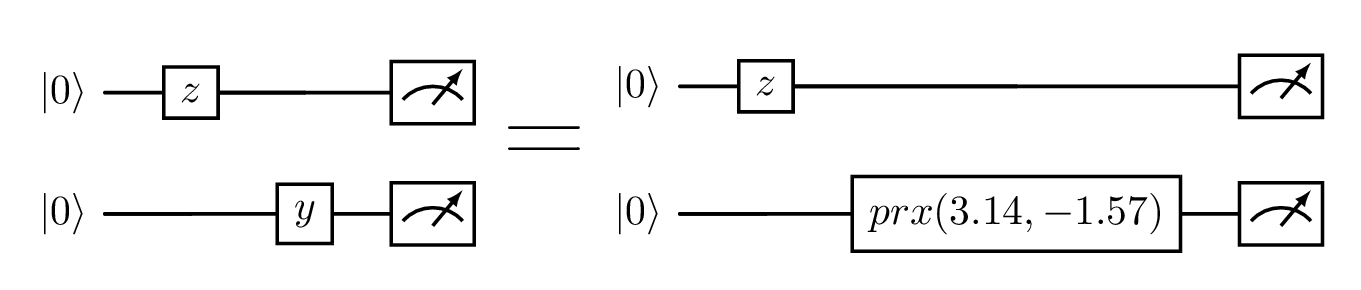

Y to PhasedRx

The pattern YToPhasedRx replaces all the Y gates in a circuit by phased RX gates.

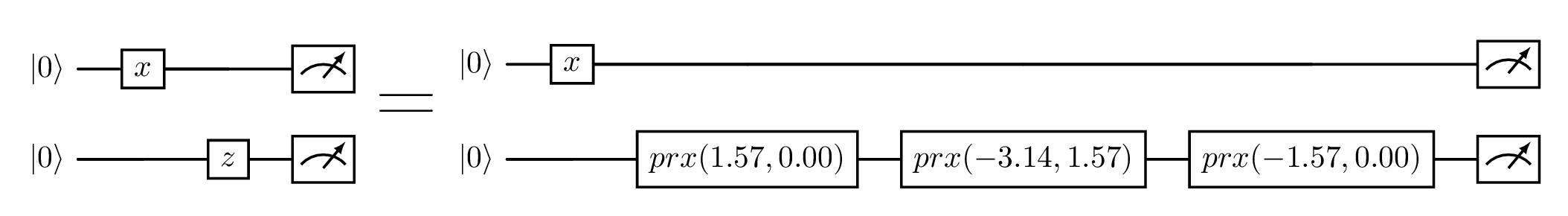

Z to PhasedRx

The pattern ZToPhasedRx replaces all the Z gates in a circuit by phased RX gates.
