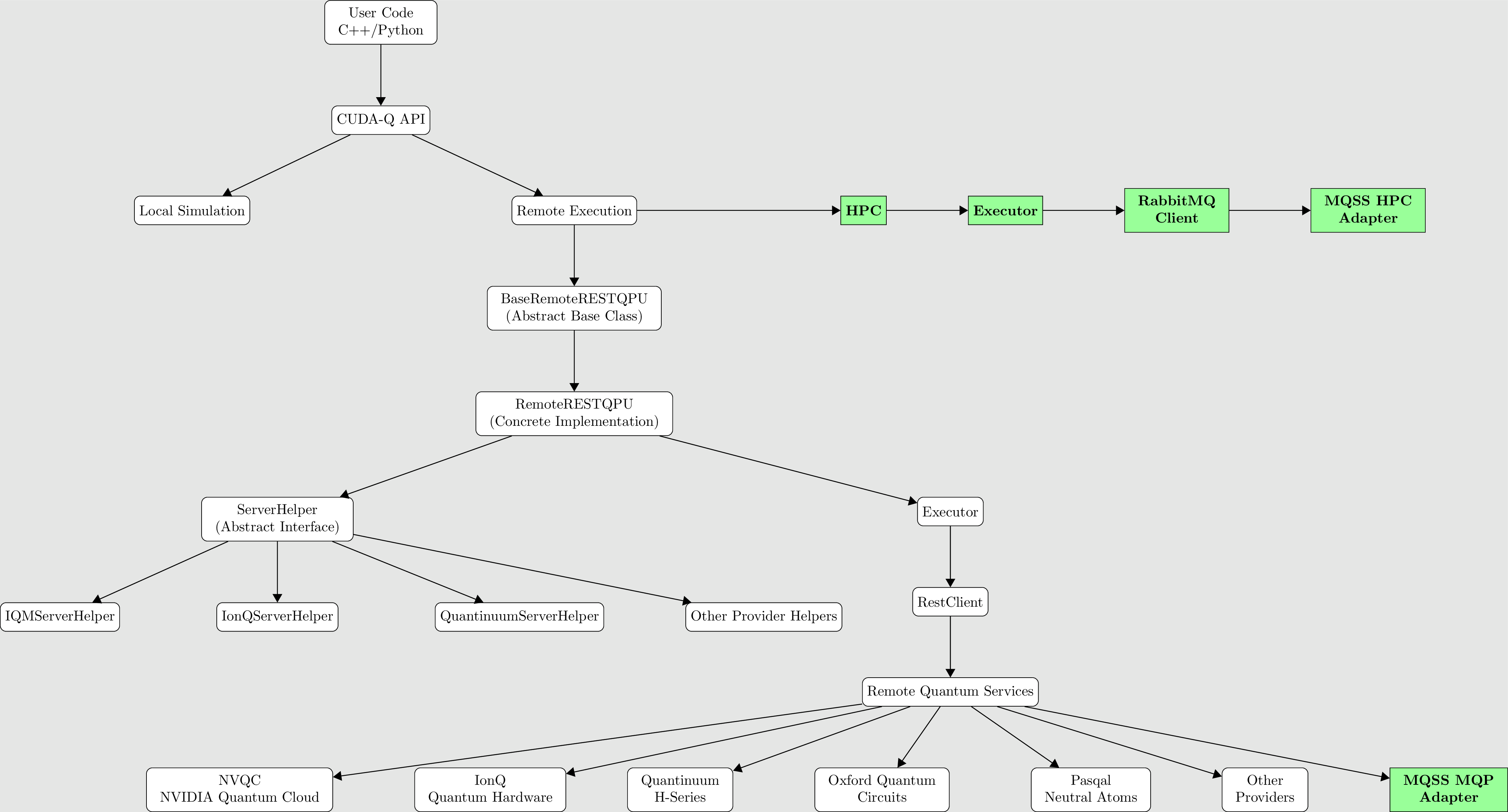

The diagram illustrates the architecture and execution flow of CUDA-Q, NVIDIA's hybrid quantum-classical platform, showing how quantum programs written by users are processed and executed, either locally or on remote backends. At the top, the flow begins with the user's quantum-classical code written in either C++ or Python, which interfaces with the CUDA-Q API. This API acts as the central entry point and splits the execution path into two main directions: local simulation and remote execution.

For local simulation, the path is straightforward—the user's quantum code is executed directly on the local system using CUDA-Q's built-in simulators. This is primarily for development and testing. In contrast, remote execution follows a more complex route. One path leads toward HPC (High-Performance Computing) systems. In this path, CUDA-Q communicates with an Executor, which manages the execution logic and passes jobs through a RabbitMQ client. This client interacts with the MQSS HPC Adapter, which serves as the interface to external HPC resources.

Parallel to this, CUDA-Q supports execution on remote quantum devices via REST interfaces. This implementation as part of CUDA-Q is backed by a modular ServerHelper interface that standardizes how different quantum providers are integrated. Multiple provider-specific helpers (like IonQServerHelper, IQMServerHelper, and QuantinuumServerHelper) implement this interface, enabling seamless interaction with each platform.

Additionally, there's a final link from Remote Quantum Services to the MQSS MQP Adapter, which facilitates further integration into the MQSS.

In essence, this diagram shows how CUDA-Q abstracts the complexity of routing quantum workloads—offering flexible paths to simulators, HPC infrastructures, and actual quantum hardware—while maintaining a modular, provider-agnostic design through abstract interfaces and adapters.

Submission Sequence via MQP

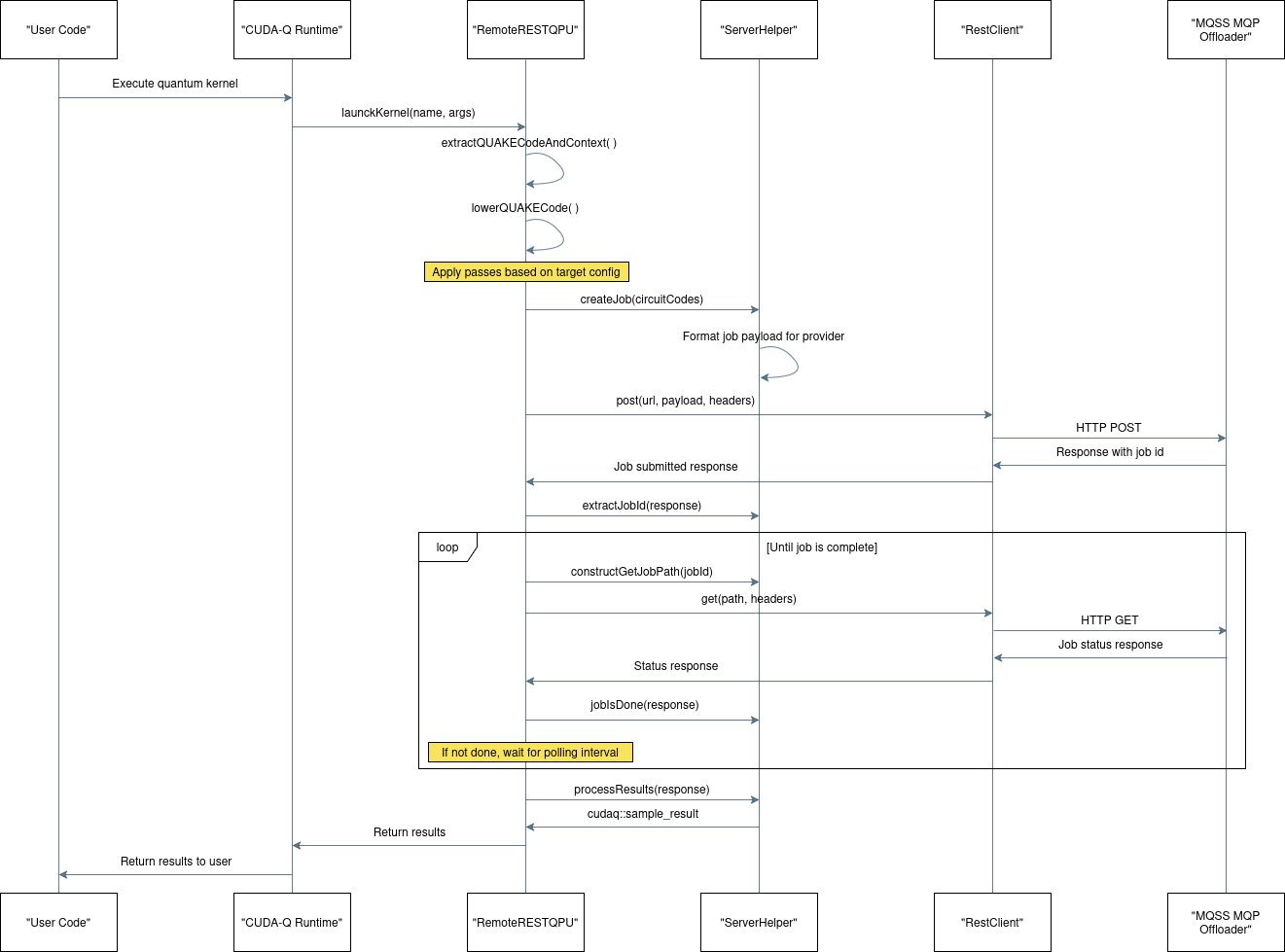

This diagram illustrates the sequence of operations when a CUDA-Q quantum kernel is executed on a remote backend, using the RemoteRESTQPU interface, which is the same path followed by the MQSS MQP access. Below is a step-by-step description of the flow, across the involved components:

CUDA-Q Remote Job Execution Flow via MQP (REST API) (Step-by-Step)

1. User Code Initiates Execution

• The user calls a quantum kernel in their code.
• This triggers the launchKernel(name, args) function in the CUDA-Q Runtime.

2. Kernel Processing Begins

• RemoteRESTQPU is invoked by the runtime.
• Internally:
  • extractQUAKECodeAndContext() – Extracts the intermediate QUAKE code representation and contextual data.
  • lowerQUAKECode() – Lowers the QUAKE code into a backend-compatible form.
  • CUDA-Q compiler passes are applied based on the target quantum backend (highlighted box in yellow).

3. Job Creation

• RemoteRESTQPU calls createJob(circuitCodes) to construct the job.
• This job is sent to the ServerHelper, which:
  • Formats the payload (circuit, metadata) into a provider-specific format.
  • Sends the job to the RestClient using:
    • post(url, payload, headers) – an HTTP POST request.

4. Job Submission

• The RestClient:
  • Forwards the job to the MQSS MQP Offloader.
  • Receives an HTTP response with a job ID.
• RemoteRESTQPU:
  • Extracts the job ID from the response: extractJobId(response).

5. Polling Loop for Completion

• Enters a loop:
  • Constructs the GET path using constructGetJobPath(jobId).
  • Sends a GET(path, headers) request to query job status.
• The provider:
  • Responds with a job status message.
• RemoteRESTQPU checks if the job is complete:
  • jobIsDone(response)
  • If not complete, it waits for a polling interval (highlighted in yellow), and repeats.

6. Result Retrieval

• Once the job is complete:
  • The result is extracted and processed: processResults(response)
  • A CUDA-Q result object is generated: cudaq::sample_result.

7. Return to User

• Results are passed back:
  • From RemoteRESTQPU → CUDA-Q Runtime → User Code.

For more information about how to extend CUDA-Q remote devices via REST API, please refer to Extending CUDA-Q with a new Hardware Backend.

Submission Sequence via HPC

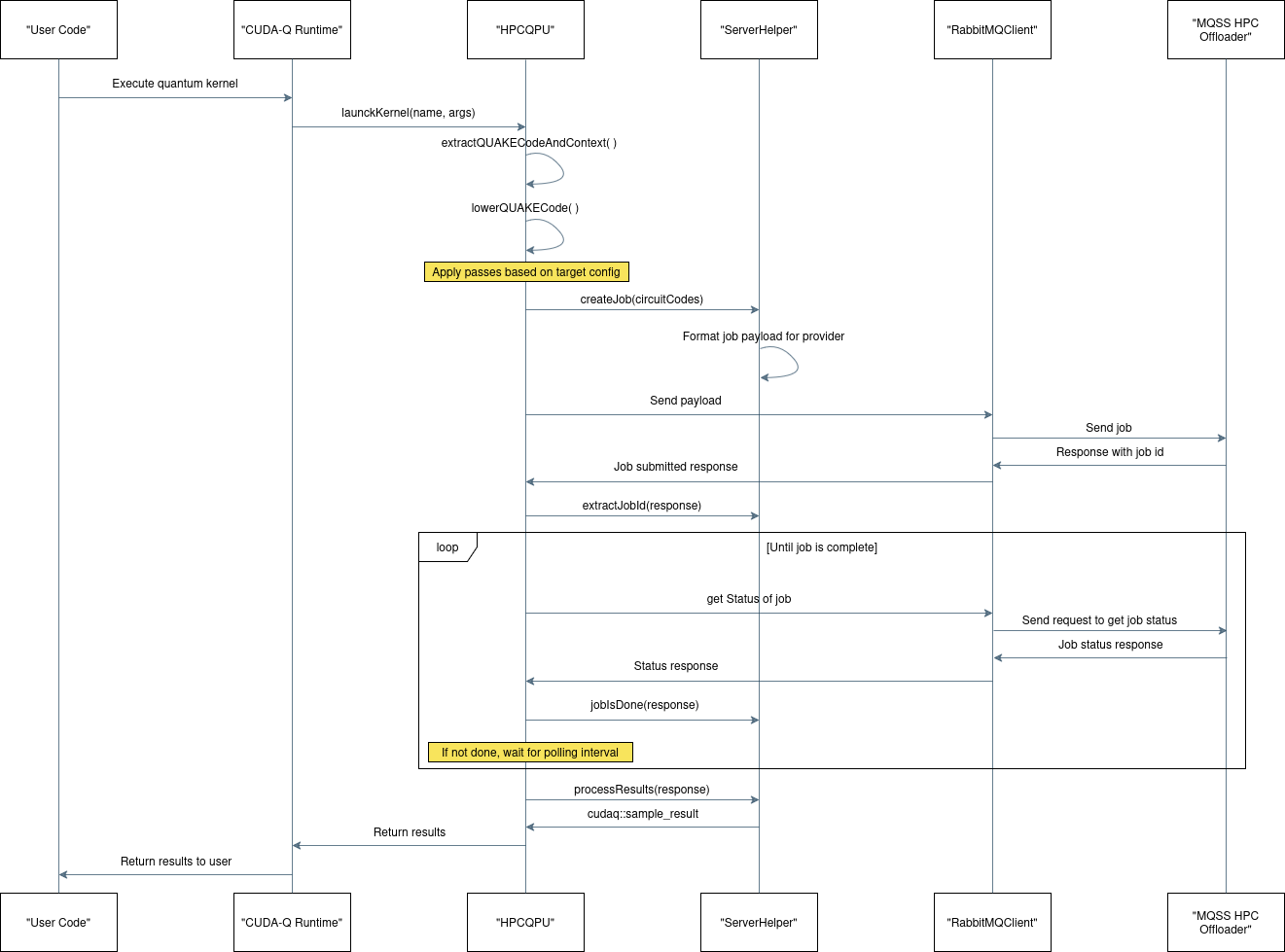

This diagram outlines the remote quantum kernel execution flow in a CUDA-Q environment using CUDA-Q MQSS Adapter using the HPC access. Here's a step-by-step breakdown of the process shown:

CUDA-Q Remote Job Execution Flow via HPC (Rabbit-MQ) (Step-by-Step)

1. User Code Initiates Execution

• The user calls a quantum kernel in their code.
• This triggers the launchKernel(name, args) function in the CUDA-Q Runtime.

2. Kernel Processing Begins

• HPCQPU is invoked by the runtime.
• Internally:
  • extractQUAKECodeAndContext() – Extracts the intermediate QUAKE code representation and contextual data.
  • lowerQUAKECode() – Lowers the QUAKE code into a backend-compatible form.
  • CUDA-Q compiler passes are applied based on the target quantum backend (highlighted box in yellow).

3. Job Creation

• HPCQPU calls createJob(circuitCodes) to construct the job.
• This job is sent to the ServerHelper, which:
  • Formats the payload (circuit, metadata) into a provider-specific format.
  • Sends the job to the RabbitMQClient using:

4. Job Submission

• The RabbitMQClient:
  • Forwards the job to the MQSS HPC Offloader.
  • Receives a response with a job ID.
• HPCQPU:
  • Extracts the job ID from the response: extractJobId(response).

5. Polling Loop for Completion

• Enters a loop:
  • Query job status.
• The provider:
  • Responds with a job status message.
• HPCQPU checks if the job is complete:
  • jobIsDone(response)
  • If not complete, it waits for a polling interval (highlighted in yellow), and repeats.

6. Result Retrieval

• Once the job is complete:
  • The result is extracted and processed: processResults(response)
  • A CUDA-Q result object is generated: cudaq::sample_result.

7. Return to User

• Results are passed back:
  • From HPCQPU → CUDA-Q Runtime → User Code.
